Wire Rope

6x19, 6x26

  • available in either fibre or independent wire rope core.

  • available in black(brt), Galvanized and stainless steel.

  • standard wire rope used in making of wire rope slings, winch lines.

  • has a high resistance to crushing.

6x36

  • available in either fibre or independent wire rope core.

  • superior fatigue resistance compared to 6x19 Class.

  • available in black(brt), Galvanized.

  • the 6x36 construction allows for better flexibility than the standard 6x26 construction.

  • more susceptible to crushing than the 6x19 Class.

  • less abrasion resistance than the 6x19 Class.

​



Galvanized Aircraft Cable

  • made to Federal Specification RR W 410D

  • preformed, right regular lay, strand core, drawn galvanized.

  • made in 7x7, 7x19, or 7x7x7 Construction.

  • NOT intended for Aircraft use.

  • relatively inexpensive wire rope used for winch lines, hand railings, wire rope slings, and general utility applications.

  • great for seismic applications.

7x7x7
7x19

Stainless Steel Aircraft Cable

  • made to Federal Specification RR W 410D

  • preformed, right/left regular lay, strand core.

  • made in 7x7, 7x19, or 1x19 Construction.

  • Available in Grade 304 and 316.

  • NOT intended for Aircraft use.

  • used in marine, commercial, industrial, and architectural applications.

1x19
7x7

35x7 Compact

  • Excellent rotation resistant properties. This rope is a great choice for all single and multiple line overhead crane applications.

  • This rope is constructed from 16 outer compacted- over 12 inner compacted strands. The compacted Lang Lay strands reduce interlocking while spooling onto multiple layer drums as well as inter strand- and inter layer nicking.

  • Improved wear resistance because of increased wire surface contacting the sheave.

  • This rope is suited to be used on tower cranes as well as overhead- and mobile crane models which require non-rotating rope properties.

  • A 35x7 Compact has very good resistance against drum crushing and abrasion.

  • A very good cable for your self-erecting drilling machines.

35x7 compact.jpg
35x7 Compact

Crosby G450 Wire Rope Clips

  • All clips are individually bagged or tagged with proper application instructions and warning information.

  • Each base has a Product Identification Code (PIC) for material traceability.

  • Based on the catalogue breaking strength of wire rope, Crosby clips have an 80% efficiency rating for sizes 1/8" to 7/8", and 90% for sizes 1" to 3-1/2".

  • Entire Clip is galvanized to resist corrosion and rusting.

Malleable Wire Rope Clips

  • For light duty, non-critical applications only.

  • Electro-Galvanized finish.

  • Federal Specifi cation FF-C-450D, Type 1, Class 2.

  • Wire rope diameter stamped on saddle.

  • Typically used for fencing, seismic, and home use.

  • NOT to be used on horizontal life lines or on wire rope slings for overhead lifting.

Forged Wire Rope Clips

  • Meet Spec. FF-C-450, Type 1, Class 1 and ASME B30.26 standard.

  • Each base has a Product Identification Code (PIC) for material traceability.

  • Hot dipped galvanized forged saddle embossed with size and forged

  • U-Bolt available in Electro-Galvanized or Hot Dip Galvanized

  • NOT to be used on wire rope slings for overhead lifting.

  • Commonly used on concrete forms, repair of tow lines,

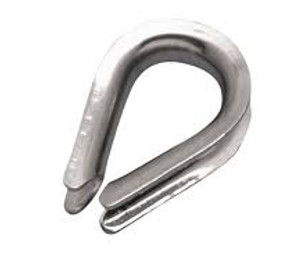

Heavy Duty Thimbles

  • sizes 1/4" up to 1-1/2".

  • Hot dip galvanized finish.

  • do not have an established working load limit.

  • import and domestic(Crosby) brands available.

  • made to U.S. Fed. Spec. FF-T-276B, Type III.

  • Also available in Stainless Steel.

Standard Thimbles

  • sizes 1/16" up to 1".

  • Electroplated zinc coating.

  • Stainless steel available upon request.

  • do not have an established working load limit.

  • made to U.S. Fed. Spec. FF-T-276B, Type II

Turnbuckles

  • Hot Dip Galvanized Finish.

  • Forged carbon steel, bodies heat treated by normalizing, end-fitting quenched & tempered.

  • Meets the requirements of U.S. Fed. Spec. FF-T-791B Type 1, Form 1 (open body).

  • RECOMMENDED FOR STRAIGHT OR IN-LINE PULLING ONLY!!!

  • Design Factor of 5:1

  • Meets or exceeds the ASME B30.26 Requirements.

  • available in Jaw & Jaw | Eye & Eye | Jaw & Eye | Hook & Hook.

Commercial Grade Turnbuckles

  • Zinc Plated Finish

  • Made using forged carbon steel

  • Used for light duty applications

  • RECOMMENDED FOR STRAIGHT OR IN-LINE PULLING ONLY!!!

  • NOT to be used for lifting or personnel applications.

  • Standard: DIN1480 Turnbuckle

Oblong Masterlinks

  • Alloy Steel - Quenched & Tempered.

  • Can be used for chain and wire rope bridles.

  • Rated for overhead lifting and hoisting.

  • Meets or exceeds the requirements of ASME B30.26

  • Painted finish.

  • Available in Domestic and Import.

Quad Assemblies

  • Alloy Steel - Quenched & Tempered.

  • Can be used for chain and wire rope bridles.

  • Rated for overhead lifting and hoisting.

  • Meets or exceeds the requirements of ASME B30.26

  • Painted finish.

Pear Links

  • Forged Carbon Steel - Quenched & Tempered.

  • Can be used for chain and wire rope bridles.

  • Painted or Galvanized finish.

  • Available in Alloy Steel.

  • Rated for overhead lifting and hoisting applications.

Weldless Round Rings

  • Forged Carbon Steel - Quenched & Tempered.

  • Can be used for chain and wire rope bridles.

  • Rated for overhead lifting and hoisting applications.

  • Painted or Self-Coloured finish.
